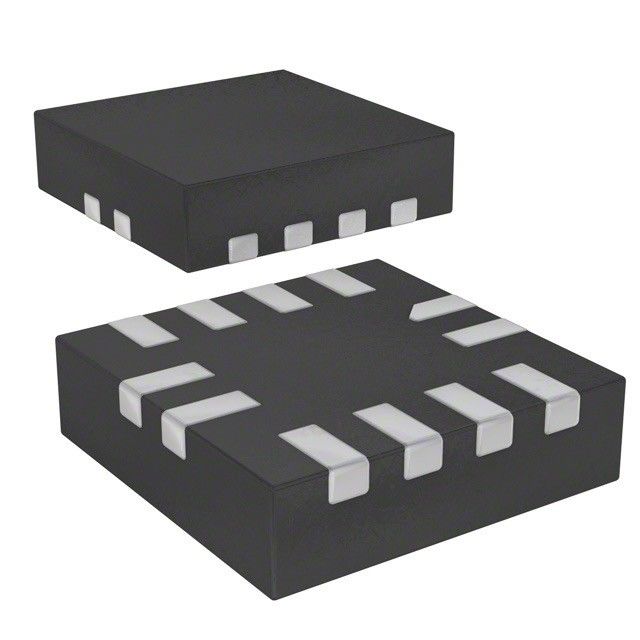

TPS63051RMWR Integrated Circuit Chip Ic Reg Bck Bst 3.3v 500ma 12vqfn
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPS63051RMWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Topology: | Buck-Boost |
|---|---|---|---|
| Output Type: | Fixed | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 2.5V | Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 3.3V | Current - Output: | 500mA |
Product Description
Specifications of TPS63051RMWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 500mA |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN |
| Supplier Device Package | 12-VQFN-HR (2.5x2.5) |
| Base Product Number | TPS63051 |
Features of TPS63051RMWR
• Real buck or boost with seamless transition between buck and boost mode
• 2.5 V to 5.5 V Input voltage range
• 0.5-A Continuous output current: VIN ≥ 2.5 V, VOUT = 3.3 V
• Adjustable and fixed output voltage version
• Efficiency > 90% in boost mode and > 95% in buck mode
• 2.5-MHz Typical switching frequency
• Adjustable average input current limit
• Adjustable soft-start time
• Device quiescent current < 60 μA
• Automatic power save mode or forced PWM mode
• Load disconnect during shutdown
• Overtemperature protection
• Small 1.6mm x 1.2mm, 12-pin WCSP and 2.5mm x 2.5mm 12-pin HotRodTM QFN package • Create a custom design using the:
– TPS63050 With the WEBENCH® Power
Designer
– TPS63051 With the WEBENCH® Power Designer
Applications of TPS63051RMWR
• Cellular and smart phones
• Tablets PC
• PC and smart phone accessories
• Battery powered applications
• Smart grid/smart meter
Environmental & Export Classifications of TPS63051RMWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
