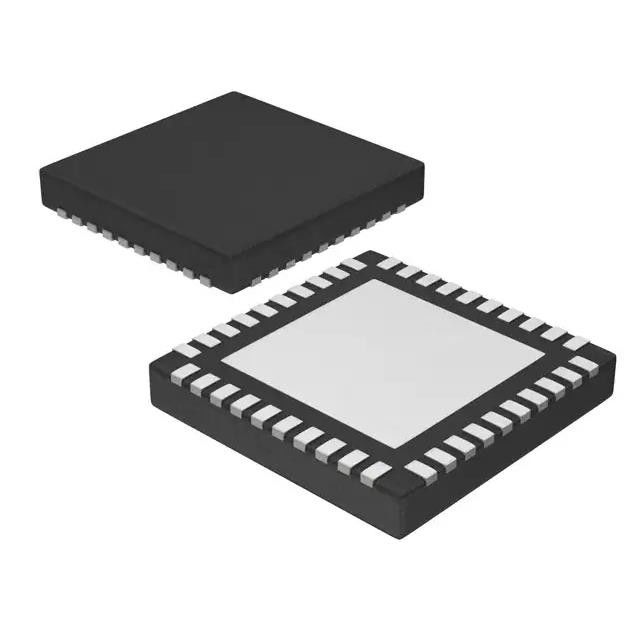

CC2541F256RHAR IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 40-VFQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC2541F256RHAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | TxRx + MCU | RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth V5.0 | Modulation: | GFSK, MSK |
| Frequency: | 2.4GHz | Data Rate (Max): | 2Mbps |
Product Description
CC2541F256RHAR Integrated Circuit Chipic Rf Txrx+Mcu Ble 5.0 40vqfn
IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 40-VFQFN Exposed Pad
Specifications of CC2541F256RHAR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.0 |
| Modulation | GFSK, MSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 0dBm |
| Sensitivity | -99dBm |
| Memory Size | 256kB Flash, 8kB RAM |
| Serial Interfaces | I²C, SPI, USART |
| GPIO | 23 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 17.9mA ~ 20.2mA |
| Current - Transmitting | 16.8mA ~ 18.2mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| Base Product Number | CC2541 |
Features of of CC2541F256RHAR
• RF – High-Performance and Low-Power 8051
– 2.4-GHz Bluetooth low energy Compliant Microcontroller Core With Code Prefetch
and Proprietary RF System-on-Chip – In-System-Programmable Flash, 128- or
– Supports 250-kbps, 500-kbps, 1-Mbps, 2- 256-KB
Mbps Data Rates – 8-KB RAM With Retention in All Power
– Excellent Link Budget, Enabling Long- Modes
Range Applications Without External Front – Hardware Debug Support
End – Extensive Baseband Automation, Including
– Programmable Output Power up to 0 dBm Auto-Acknowledgment and Address
– Excellent Receiver Sensitivity (–94 dBm at Decoding
1 Mbps), Selectivity, and Blocking
– Retention of All Relevant Registers in All
Performance Power Modes
– Suitable for Systems Targeting Compliance • Peripherals
With Worldwide Radio Frequency – Powerful Five-Channel DMA
Regulations: ETSI EN 300 328 and EN 300
– General-Purpose Timers (One 16-Bit, Two440 Class 2 (Europe), FCC CFR47 Part 15 8-
Bit) (US), and ARIB STD-T66 (Japan)
– IR Generation Circuitry
• Layout
– 32-kHz Sleep Timer With Capture
– Few External Components
– Accurate Digital RSSI Support
– Reference Design Provided
– Battery Monitor and Temperature Sensor
– 6-mm × 6-mm QFN-40 Package
– 12-Bit ADC With Eight Channels and
– Pin-Compatible With CC2540 (When Not Configurable Resolution
Using USB or I2C)
– AES Security Coprocessor
• Low Power
– Two Powerful USARTs With Support for
– Active-Mode RX Down to: 17.9 mA Several Serial Protocols
– Active-Mode TX (0 dBm): 18.2 mA
– 23 General-Purpose I/O Pins
– Power Mode 1 (4-µs Wake-Up): 270 µA (21 × 4 mA, 2 × 20 mA)
– Power Mode 2 (Sleep Timer On): 1 µA
– I2C interface
– Power Mode 3 (External Interrupts): 0.5 µA – 2 I/O Pins Have LED Driving Capabilities
– Wide Supply-Voltage Range (2 V–3.6 V) – Watchdog Timer
• TPS62730 Compatible Low Power in Active – Integrated High-Performance Comparator Mode
• Development Tools
– RX Down to: 14.7 mA (3-V supply)
– CC2541 Evaluation Module Kit
– TX (0 dBm): 14.3 mA (3-V supply) (CC2541EMK)
White space
– CC2541 Mini Development Kit (CC2541DK- White space MINI) White space
White
– SmartRF™ Software space
White space
– IAR Embedded Workbench™ Available
.
Applications of CC2541F256RHAR
• 2.4-GHz Bluetooth low energy Systems
• Proprietary 2.4-GHz Systems
• Sports and Leisure Equipment
• Mobile Phone Accessories
• Consumer Electronics
Environmental & Export Classifications of CC2541F256RHAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.39.0001 |
Want to Know more details about this product
