TPS51200DRCR Converter DDR Voltage Regulator Ic Reg Conv Ddr 1out 10vson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS51200DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Supplier Device Package: | 10-VSON (3x3) |
|---|---|---|---|
| Product Status: | Active | Applications: | Converter, DDR |
| Voltage - Input: | 2.38V ~ 3.5V | Number Of Outputs: | 1 |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
Product Description
TPS51200DRCR Converter DDR Voltage Regulator Ic Reg Conv Ddr 1out 10vson
|

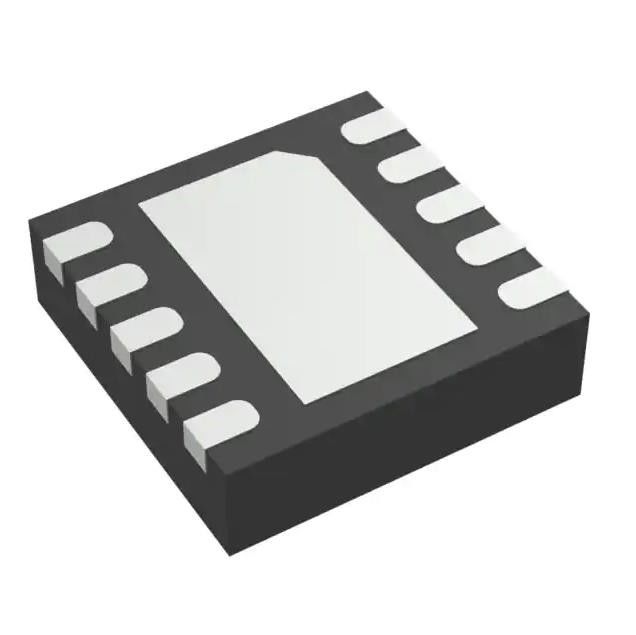

- Converter, DDR Voltage Regulator IC 1 Output 10-VSON (3x3)
Specifications of TPS51200DRCR
|
Features of TPS51200DRCR
• Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
• VLDOIN Voltage Range: 1.1 V to 3.5 V
• Sink and Source Termination Regulator Includes Droop Compensation
• Requires Minimum Output Capacitance of 20-μF (Typically 3 × 10-μF MLCCs) for Memory Termination Applications (DDR)
• PGOOD to Monitor Output Regulation
• EN Input
• REFIN Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider
• Remote Sensing (VOSNS)
• 10-mA Buffered Reference (REFOUT)
• Built-in Soft Start, UVLO, and OCL
• Thermal Shutdown • Supports DDR, DDR2, DDR3, DDR3L, LowPower DDR3, and DDR4 VTT Applications
• 10-Pin VSON Package With Thermal Pad
Applications of TPS51200DRCR
• Memory Termination Regulator for DDR, DDR2, DDR3, DDR3L, Low-Power DDR3 and DDR4
• Notebooks, Desktops, and Servers
• Telecom and Datacom
• Base Stations
• LCD-TVs and PDP-TVs
• Copiers and Printers
• Set-Top Boxes
Environmental & Export Classifications of TPS51200DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
