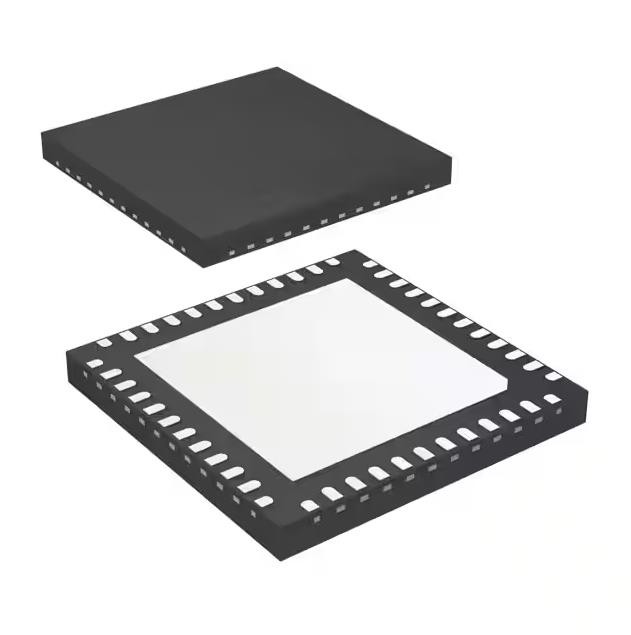

DS90UH925QSQX/NOPB 2.975Gbps Serializer 31 Input 1 Output 48-WQFN (7x7)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90UH925QSQX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | Automotive, AEC-Q100 |
|---|---|---|---|
| Product Status: | Discontinued At Digi-Key | Function: | Serializer |
| Data Rate: | 2.975Gbps | Input Type: | LVCMOS |
| Number Of Inputs: | 31 | Voltage - Supply: | 3V ~ 3.6V |
Product Description
DS90UH925QSQX/NOPB 2.975Gbps Serializer 31 Input 1 Output 48-WQFN (7x7)
|
IC SERIAL/DESERIAL 24BIT 48WQFN
Product Attributes of DS90UH925QSQX/NOPB
|
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Serializers, Deserializers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Discontinued at Digi-Key |
| Function | Serializer |
| Data Rate | 2.975Gbps |
| Input Type | LVCMOS |
| Output Type | FPD-Link III, LVDS |
| Number of Inputs | 31 |
| Number of Outputs | 1 |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-WQFN (7x7) |
| Base Product Number | DS90UH |
Features of DS90UH925QSQX/NOPB
• Integrated HDCP Cipher Engine with On-chip Key Storage
• Bidirectional Control Interface Channel Interface with I2C Compatible Serial Control Bus
• Supports High Definition (720p)Digital Video Format
• RGB888+VS,HS,DE and I2S Audio Supported
• 5 to 85 MHz PCLK Supported
• Single 3.3V Operation with 1.8 V or 3.3 V Compatible LVCMOS I/O Interface
• AC-coupled STP Interconnect up to 10 meters
• Parallel LVCMOS Video Inputs
• DC-balanced & Scrambled Data with Embedded Clock
• HDCP Content Protected
• Supports HDCP Repeater Application
• Internal Pattern Generation
• Low Power Modes Minimize Power Dissipation
• Automotive Grade Product:AEC-Q100 Grade 2 Qualified
• >8k V HBM and ISO 10605 ESD rating
• Backward Compatible Modes
Applications of DS90UH925QSQX/NOPB
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
