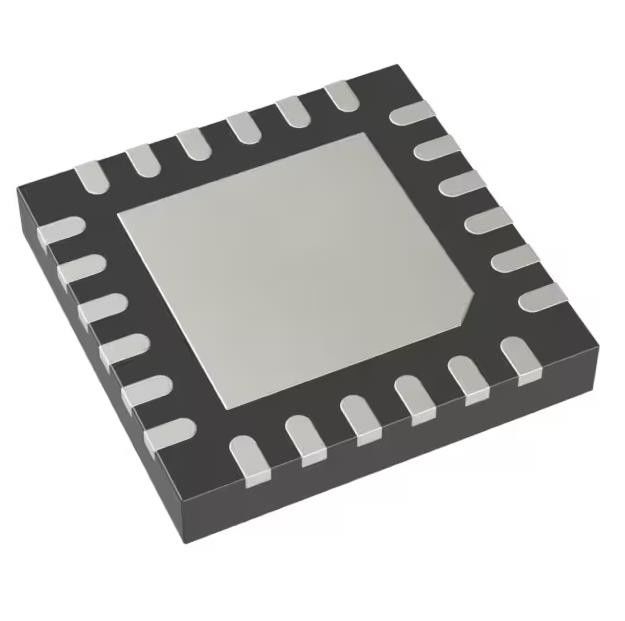

MAX9737ETG +T Amplifier IC 1 Channel Class D 24-TQFN DIP IC Socket
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | MAX9737ETG +T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | MAX9737ETG+ | Type: | Class D |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | 13W X 1 @ 4Ohm |
| Voltage - Supply: | 8V ~ 28V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 24-TQFN (4x4) | Package: | Tray |
| Highlight: | MAX9737ETG +T,Amplifier IC 1 Channel,24-TQFN DIP IC Socket |
||
Product Description
MAX9737ETG +T Amplifier IC 1-Channel Class D 24-TQFN DIP IC Sockets
The MAX9737 is available in the 24-pin, TQFN-EP package and is specified over the -40°C to +85°C temperature range.
Features of MAX9737ETG +T
♦ 8V to 28V Supply Voltage Range
♦ Spread-Spectrum Modulation Enables Low-EMI
Solution
♦ Passes EMI Limit with Up to 1m of Speaker Cable
♦ High 80dB PSRR
♦ Up to 88% Efficiency Eliminates Heatsink
♦ Thermal and Output Current Protection
♦ < 1µA Shutdown Mode
♦ Click-and-Pop Suppression
♦ < 10ms Turn-On Time
♦ Space-Saving, 4mm x 4mm x 0.8mm, 24-Pin TQFN
Package
Specifications of MAX9737ETG +T
|
Mfr
|
Analog Devices Inc./Maxim Integrated
|
|
Series
|
-
|
|
Product
|
MAX9737ETG+
|
|
Type
|
Class D
|
|
Output Type
|
1-Channel (Mono)
|
|
Max Output Power x Channels @ Load
|
13W x 1 @ 4Ohm
|
|
Voltage - Supply
|
8V ~ 28V
|
|
Features
|
Depop, Mute, Short-Circuit and Thermal Protection, Shutdown
|
|
Mounting Type
|
Surface Mount
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Supplier Device Package
|
24-TQFN (4x4)
|
|
Package / Case
|
24-WFQFN Exposed Pad
|
|
Base Product Number
|
MAX9737
|
Applications of MAX9737ETG +T
• Automotive camera module
• Automotive infotainment
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
