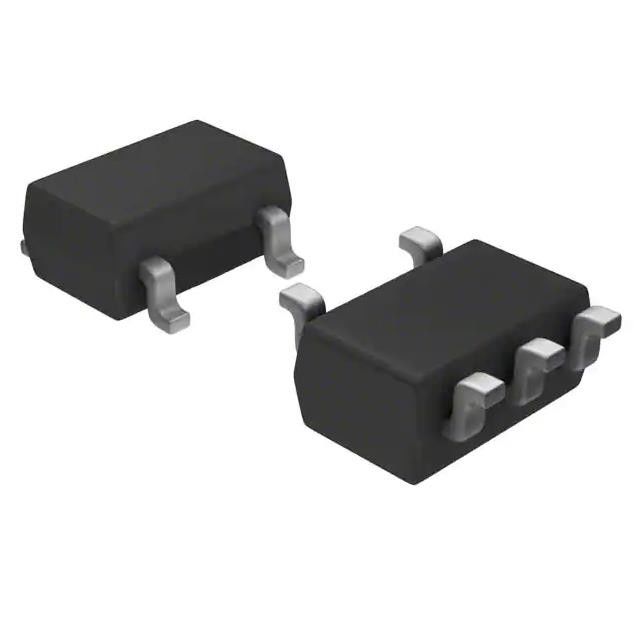

MAX918EUK + T IC COMPARATOR 1 W/VOLT REF SOT23 1.8V ~ 5.5V 5mV @ 5V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | MAX918EUK+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | MAX918EUK+T | Voltage - Supply, Single/Dual: | (±) 1.8V ~ 5.5V |
|---|---|---|---|
| Voltage - Input Offset (Max): | 5mV @ 5V | Current - Input Bias (Max): | 0.001µA @ 5V |
| Current - Output (Typ): | 50mA | Current - Quiescent (Max): | 1.6µA |
| Propagation Delay (Max): | 120µs | Hysteresis: | 4mV |
Product Description
MAX918EUK + T IC COMPARATOR 1 W/VOLT REF SOT23 1.8V ~ 5.5V 5mV @ 5V
Comparator with Voltage Reference Open-Drain, Rail-to-Rail SOT-23-5
The MAX917–MAX920 nanopower comparators in
space-saving SOT23 packages feature Beyond-theRails™ inputs and are guaranteed to operate down to
+1.8V. The MAX917/MAX918 feature an on-board
1.245V ±1.5% reference and draw an ultra-low supply
current of only 750nA, while the MAX919/MAX920 (without reference) require just 380nA of supply current.
These features make the MAX917–MAX920 family of
comparators ideal for all 2-cell battery applications,
including monitoring/management.
Features of MAX918EUK+T
♦ Ultra-Low Supply Current
380nA per Comparator (MAX919/MAX920)
750nA per Comparator with Reference
(MAX917/MAX918)
♦ Guaranteed to Operate Down to +1.8V
♦ Internal 1.245V ±1.5% Reference
(MAX917/MAX918)
♦ Input Voltage Range Extends 200mV
Beyond-the-Rails
♦ CMOS Push-Pull Output with ±8mA Drive
Capability (MAX917/MAX919)
♦ Open-Drain Output Versions Available
(MAX918/MAX920)
♦ Crowbar-Current-Free Switching
♦ Internal Hysteresis for Clean Switching
♦ No Phase Reversal for Overdriven Inputs
♦ Space-Saving SOT23 Package
Specifications of MAX918EUK+T
|
Product
|
MAX918EUK+T
|
|
Type
|
with Voltage Reference
|
|
Number of Elements
|
1
|
|
Output Type
|
Open-Drain, Rail-to-Rail
|
|
Voltage - Supply, Single/Dual (±)
|
1.8V ~ 5.5V
|
|
Voltage - Input Offset (Max)
|
5mV @ 5V
|
|
Current - Input Bias (Max)
|
0.001µA @ 5V
|
|
Current - Output (Typ)
|
50mA
|
|
Current - Quiescent (Max)
|
1.6µA
|
|
CMRR, PSRR (Typ)
|
80dB PSRR
|
|
Propagation Delay (Max)
|
120µs
|
|
Hysteresis
|
4mV
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
MAX918
|
range (−10 ̊
Environmental & Export Classificationwith avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of MAX918EUK+T
2-Cell Battery Monitoring/Management
Ultra-Low-Power Systems
Mobile Communications
Notebooks and PDAs
Threshold Detectors/Discriminators
Sensing at Ground or Supply Line
Telemetry and Remote Systems
Medical Instruments
