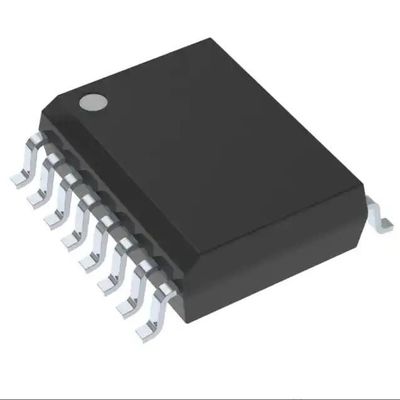

ISO1176DWR Integrated Circuit Chip 2500Vrms 3 Channel 40Mbps 25kV/µs
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ISO1176DWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | ISO1176DWR | Settling Time: | 10µs |
|---|---|---|---|
| Voltage - Supply, Analog: | ±14.25V ~ 15.75V | Voltage - Supply, Digital: | 14.25V ~ 15.75V |
| Operating Temperature: | -40°C ~ 85°C | Supplier Device Package: | 16-SOIC |
Product Description
ISO1176DWR Integrated Circuit Chip 2500Vrms 3 Channel 40Mbps 25kV/µs
RS422, RS485 Digital Isolator 2500Vrms 3 Channel 40Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Features of ISO1176DWR
Meets or Exceeds the Requirements of EN 50170 and TIA/EIA-485-A
Signaling Rates up to 40 Mbps
Differential Output Exceeds 2.1 V (54-Ω Load)
Low Bus Capacitance – 10 pF (Maximum)
Up to 160 Transceivers on a Bus
50 kV/μs Typical Transient Immunity
Fail-Safe Receiver for Bus Open, Short, Idle
3.3-V Inputs are 5-V Tolerant
Bus-Pin ESD Protection
– 16-kV HBM Between Bus Pins and GND2
– 6-kV HBM Between Bus Pins and GND1
DESCRIPTION of ISO1176DWR
The ISO1176 device is an isolated differential line transceiver designed for use in PROFIBUS
applications. The device is ideal for long transmission lines because the ground loop is broken to provide for
operation with a much larger common-mode voltage range. The symmetrical isolation barrier of each
device is tested to provide 2500 VRMS of isolation per UL between the line transceiver and the logic level interface
Specifications of ISO1176DWR
|
Product
|
ISO1176DWR |
|
Technology
|
Capacitive Coupling
|
|
Type
|
RS422, RS485
|
|
Isolated Power
|
No
|
|
Number of Channels
|
3
|
|
Inputs - Side 1/Side 2
|
2/1
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
2500Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Data Rate
|
40Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
-
|
|
Pulse Width Distortion (Max)
|
-
|
|
Rise / Fall Time (Typ)
|
-
|
|
Voltage - Supply
|
3.15V ~ 5.5V, 4.75V ~ 5.25V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Base Product Number
|
ISO1176
|
range (−10 ̊
with improved accuracy). The LM35 series isailable pack-
APPLICATIONS of DAC7715UB / 1K
Profibus
Factory Automation
Networked Sensors
Motor and Motion Control
HVA and Building Automation Networks
Networked Security Stations
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
