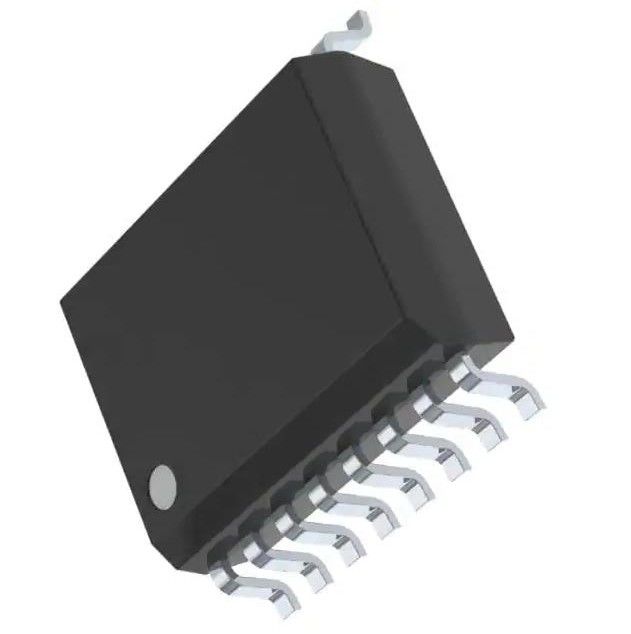

DAC7715UB / IK IC Chip SPI 12 Bit Digital Analog Converter 4 16-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | DAC7715UB / IK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | DAC7715UB / 1K | Settling Time: | 10µs |
|---|---|---|---|
| Voltage - Supply, Analog: | ±14.25V ~ 15.75V | Voltage - Supply, Digital: | 14.25V ~ 15.75V |
| Operating Temperature: | -40°C ~ 85°C | Supplier Device Package: | 16-SOIC |
Product Description
DAC7715UB / IK Integrated Circuit Chip SPI 12 Bit Digital Analog Converter 4
Quad, Serial Input, 12-Bit, Voltage Output DIGITAL-TO-ANALOG CONVERTER
Features of DAC7715UB / 1K
● LOW POWER: 250mW (max)
● SETTLING TIME: 10µs to 0.012%
● 12-BIT LINEARITY AND MONOTONICITY: –40°C to +85°C
● SMALL SO-16 PACKAGE
DESCRIPTION of DAC7715UB / 1K
The DAC7715 is a quad, serial input, 12-bit, voltage
output Digital-to-Analog Converter (DAC) with
guaranteed 12-bit monotonic performance over the
–40°C to +85°C temperature range. An asynchronous
reset clears all registers to either mid-scale (800H) or
zero-scale (000H), selectable via the RESETSEL pin.
Specifications of DAC7715UB / 1K
|
Product
|
DAC7715UB / 1K
|
|
Digi-Key Programmable
|
Not Verified
|
|
Number of Bits
|
12
|
|
Number of D/A Converters
|
4
|
|
Settling Time
|
10µs
|
|
Output Type
|
Voltage - Buffered
|
|
Differential Output
|
No
|
|
Data Interface
|
SPI
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
±14.25V ~ 15.75V
|
|
Voltage - Supply, Digital
|
14.25V ~ 15.75V
|
|
INL/DNL (LSB)
|
±1 (Max), ±1 (Max)
|
|
Architecture
|
R-2R
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
DAC7715
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series isailable pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
APPLICATIONS of DAC7715UB / 1K
● PROCESS CONTROL
● ATE PIN ELECTRONICS
● MOTOR CONTROL
● DAC-PER-PIN PROGRAMMERS
Other informations
| Device | Package Type | Package Drawing | Pins | SPQ | Length(mm) | Width (mm) | Height (mm) |
| DAC7715U/1K | SOIC | DW | 16 | 1000 | 350.0 | 350.0 | 43.0 |
| DAC7715UB/1K | SOIC | DW | 16 | 1000 | 350.0 | 350.0 | 43.0 |
