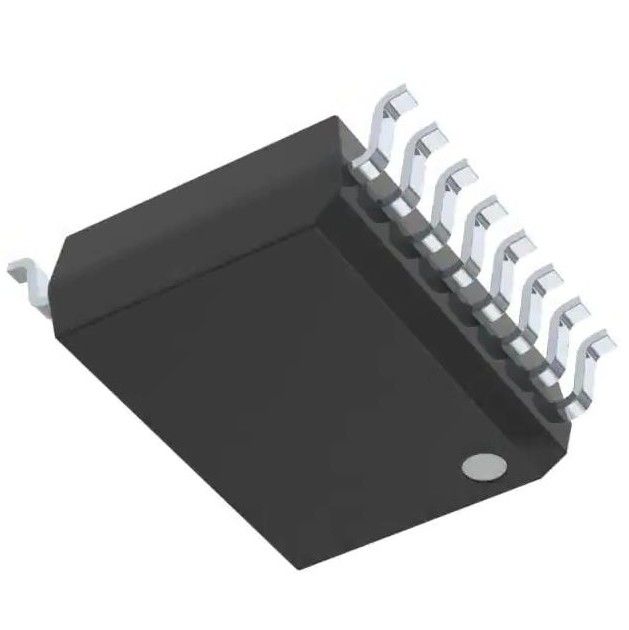

DAC7715UB IC Chip 12 Bit Digital to Analog Converter 4 16-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | DAC7715UB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | DAC7715UB | Voltage - DC Reverse (Vr) (Max): | 150mA |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 10 MA | Current - Reverse Leakage @ Vr: | 2.5 µA @ 70 V |
| Reverse Recovery Time (trr): | 4 Ns | ||
Product Description
DAC7715UB Integrated Circuit Chip 12 Bit Digital to Analog Converter 4 16-SOIC
Quad, Serial Input, 12-Bit, Voltage Output DIGITAL-TO-ANALOG CONVERTER
Features of DAC7715UB
● LOW POWER: 250mW (max)
● UNIPOLAR OR BIPOLAR OPERATION
● SETTLING TIME: 10µs to 0.012%
● 12-BIT LINEARITY AND MONOTONICITY:
–40°C to +85°C
● DOUBLE-BUFFERED DATA INPUTS
● SMALL SO-16 PACKAGE
DESCRIPTION of DAC7715UB
The DAC7715 is a quad, serial input, 12-bit, voltage
output Digital-to-Analog Converter (DAC) with
guaranteed 12-bit monotonic performance over the
–40°C to +85°C temperature range. An asynchronous
reset clears all registers to either mid-scale (800H) or
zero-scale (000H), selectable via the RESETSEL pin.
The individual DAC inputs are double buffered to
allow for simultaneous update of all DAC outputs.
The device can be powered from a single +15V supply
or from dual +15V and –15V supplies.
Low power and small size makes the DAC7715 ideal
for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servocontrol. The device is available in a SO-16 package
and is guaranteed over the –40°C to +85°C temperature range.
Specifications of DAC7715UB
|
Product
|
DAC7715UB
|
|
Digi-Key Programmable
|
Not Verified
|
|
Number of Bits
|
12
|
|
Number of D/A Converters
|
4
|
|
Settling Time
|
10µs
|
|
Output Type
|
Voltage - Buffered
|
|
Differential Output
|
No
|
|
Data Interface
|
SPI
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
±14.25V ~ 15.75V
|
|
Voltage - Supply, Digital
|
14.25V ~ 15.75V
|
|
INL/DNL (LSB)
|
±1 (Max), ±1 (Max)
|
|
Architecture
|
R-2R
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
DAC7715
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
APPLICATIONS of DAC7715UB
● PROCESS CONTROL
● ATE PIN ELECTRONICS
● CLOSED-LOOP SERVO-CONTROL
● MOTOR CONTROL
● DATA ACQUISITION SYSTEMS
● DAC-PER-PIN PROGRAMMERS
