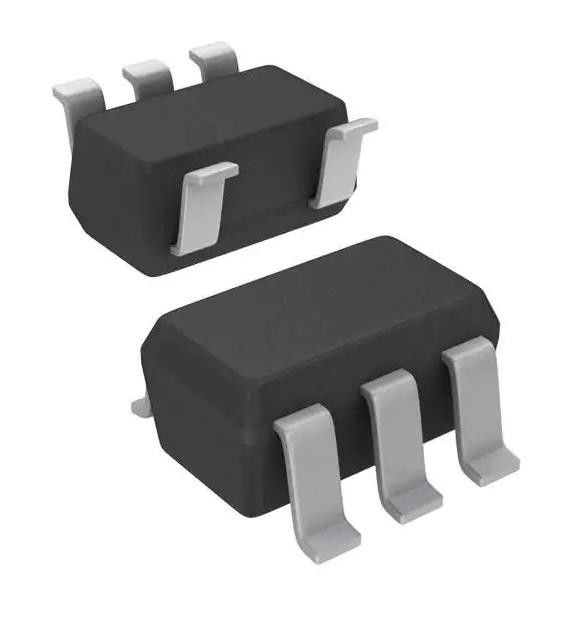

TLV75725PDBVR Integrated Circuit Chip Linear Voltage Regulator 1A SOT-23-5
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TLV75725PDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 2.5V |
|---|---|---|---|
| Voltage Dropout (Max): | 0.65V @ 1A | Current - Output: | 1A |
| Current - Supply (Max): | 40 µA | PSRR: | 52dB (1kHz ~ 1MHz) |
Product Description
TLV75725PDBVR Integrated Circuit Chip Linear Voltage Regulator 1A SOT-23-5
12 Bit Digital to Analog Converter 8 16-TSSOP
Features of TLV75725PDBVR
Input Voltage Range: 1.45 V to 5.5 V
• Available in Fixed-Output Voltages:
– 0.6 V to 5 V (50-mV Steps)
• Low IQ: 25 µA (Typical)
• Low Dropout:
– 425 mV (Maximum) at 1 A (3.3 VOUT)
• Output Accuracy: 1% (Maximum)
• Built-In Soft-Start With Monotonic VOUT Rise
• Foldback Current Limit
• Active Output Discharge
• High PSRR: 45 dB at 100 kHz
• Stable With a 1-µF Ceramic Output Capacitor
• Packages:
– SOT-23-5 (Preview)
– 2 mm × 2 mm (WSON-6)
|
Product
|
TLV75725PDBVR
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
5.5V
|
|
Voltage - Output (Min/Fixed)
|
2.5V
|
|
Voltage - Output (Max)
|
-
|
|
Voltage Dropout (Max)
|
0.65V @ 1A
|
|
Current - Output
|
1A
|
|
Current - Supply (Max)
|
40 µA
|
|
PSRR
|
52dB (1kHz ~ 1MHz)
|
|
Control Features
|
Enable
|
|
Protection Features
|
Current Limit, Thermal Shutdown, UVLO
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
TLV75725
|
Environmental & Export Classifications of TLV75725PDBVR
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of TLV75725PDBVR
Set Top Boxes, TV, and Gaming Consoles
• Portable and Battery-Powered Equipment
• Desktop, Notebooks, and Ultrabooks
• Tablets and Remote Controls
• White Goods and Appliances
• Grid Infrastructure and Protection Relays
• Camera Modules and Image Sensors
