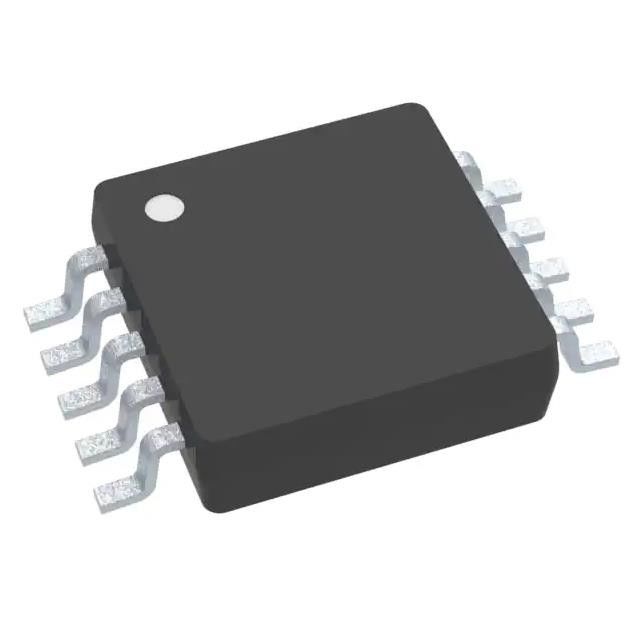

THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | THVD1512DGSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Receiver Hysteresis: | 50 MV | Data Rate: | 500 MA |
|---|---|---|---|
| Voltage - Supply: | 4.5V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C |
| Package / Case: | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Supplier Device Package: | 10-VSSOP |
| Highlight: | THVD1512DGSR Transistor IC Chip,Full RS485 Transistor IC Chip,500kbps THVD1512DGSR |
||
Product Description
THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps
THVD1512DGSR 1 / 1 IC TRANSCEIVER Full RS485 10-VSSOP 500kbps
Features of THVD1512DGSR
Meets or Exceeds the Requirements of the TIA/EIA-485A Standard
• 4.5 V to 5.5 V Supply Voltage
• Integrated Bus I/O Protection
– ± 30 kV HBM ESD
– ± 18 kV IEC 61000-4-2 ESD Contact Discharge
– ± 25 kV IEC 61000-4-2 ESD Air-Gap Discharge
– ± 4 kV IEC 61000-4-4 Electrical Fast Transient
• Extended Operational Common-mode: ± 15 V
• Low EMI 500 kbps and 50 Mbps Data Rates
• Extended Temperature Range: -40°C to 125°C
• Large Receiver Hysteresis for Noise Rejection
• Low Power Consumption
– Low Standby Supply Current: < 1 µA
– Current During Operation: < 1 mA
• Glitch-Free Power-Up/Down for Hot Plug-in Capability
• Open, Short, and Idle Bus Failsafe
• 1/8 Unit Load Options (Up to 256 Bus Nodes)
• Small-Size VSSOP Packages Save Board Space or SOIC for Drop-in Compatibility
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Receiver Hysteresis | 50 mV |
| Data Rate | 500kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | THVD1512 |
Environmental & Export Classifications of THVD1512DGSR
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of THVD1512DGSR
• Motor Drives
• Factory Automation and Control
• Grid Infrastructure • Building Automation
• HVAC Systems • Video Surveillance
• Process Analytics
• Telecom Infrastructure
