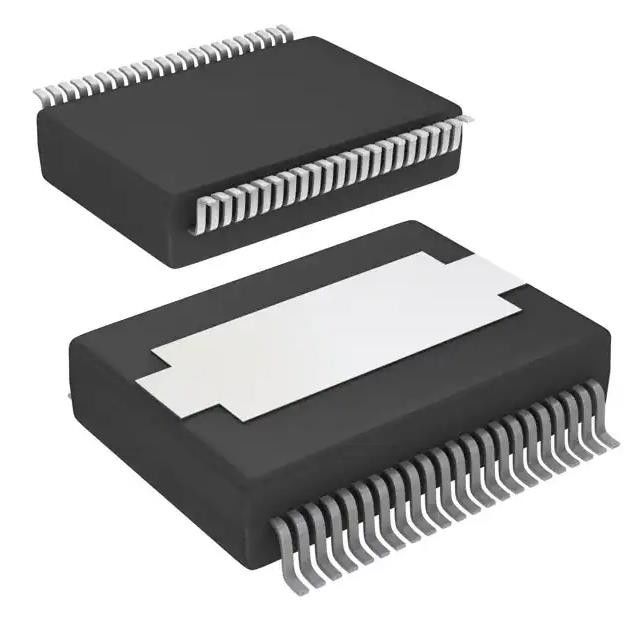

TAS5424CTDKERQ1 Class D Amplifier IC 44-HSSOP Automotive AEC-Q100 4 Channel
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TAS5424CTDKERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | 4-Channel (Quad) | Voltage: | 6V ~ 24V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Operating Temperature: | -40°C ~ 105°C (TA) |
| Current - Output / Channel: | 50mA | Supplier Device Package: | 44-HSSOP |
| High Light: | TAS5424CTDKERQ1 Class D Amplifier IC,4 Channel TAS5424CTDKERQ1,Class D Amplifier IC 44-HSSOP |
||
Product Description
TAS5424CTDKERQ1 Amplifier IC 4-Channel (Quad) Class D 44-HSSOP Automotive, AEC-Q100
Features of TAS5424CTDKERQ1
AEC-Q100 Qualified for Automotive Applications
– Device Temperature: –55°C to 125°C Ambient
– Device HBM Classification Level: ±2500 V
– Device CDM Classification Level: ±500 V
• TAS5414C-Q1 – Single-Ended Input
• TAS5424C-Q1 – Differential Input
• Four-Channel Digital Power Amplifier
• Four Analog Inputs, Four BTL Power Outputs
• Typical Output Power at 10% THD+N
– 28 W/Ch Into 4 Ω at 14.4 V
– 50 W/Ch Into 2 Ω at 14.4 V
– 79 W/Ch Into 4 Ω at 24 V
– 150 W/Ch Into 2 Ω at 24 V (PBTL)
• Channels Can Be Paralleled (PBTL) for HighCurrent Applications
• THD+N < 0.02%, 1 kHz, 1 W Into 4 Ω
• Patented Pop- and Click-Reduction Technology
– Soft Muting With Gain Ramp Control
– Common-Mode Ramping
|
Mfr
|
TI
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Type
|
Class D
|
|
Output Type
|
4-Channel (Quad)
|
|
Max Output Power x Channels @ Load
|
-
|
|
Voltage - Supply
|
6V ~ 24V
|
|
Features
|
Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
|
|
Mounting Type
|
Surface Mount
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Supplier Device Package
|
44-HSSOP
|
|
Package / Case
|
44-BSSOP (0.433", 11.00mm Width) Exposed Pad
|
|
Base Product Number
|
TAS5424
|
Environmental & Export Classifications of TAS5424CTDKERQ1
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
Applications of TAS5424CTDKERQ1
OEM/Retail Head Units and Amplifier Modules
Where Feature Densities and System
Configurations Require Reduction in Heat From
the Audio Power Amplifier
