SN74LV595ARGYR Power Logic 8 Bit Shift Register 1 Element TRI-ST 16-VQFN
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN74LV595ARGYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SN74LV595ARGYR | Number Of Circuits: | 1 |
|---|---|---|---|
| Slew Rate: | 20V/µs | Gain Bandwidth Product: | 8 MHz |
| Current - Input Bias: | 5 PA | Voltage - Input Offset: | 500 µV |
| Current - Supply: | 4mA | Operating Temperature: | -40°C ~ 85°C |
| High Light: | Power Logic 8 Bit Shift Register,TRI-ST SN74LV595ARGYR,16-VQFN SN74LV595ARGYR |
||
Product Description

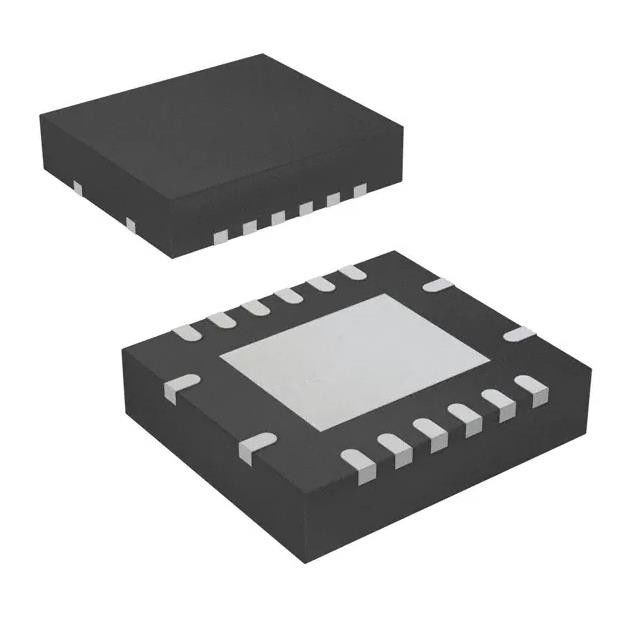

SN74LV595ARGYR Shift Register 1 Element 8 Bit TRI-ST 16-VQFN (4x3.5)
Features of SN74LV595ARGYR
FET input: IB = 50 pA Maximum FET input: IB = 50
• VCC operation of 2 V to 5.5 V
• Maximum tpd of 7.1 ns at 5 V
• Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (output VOH undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
• Support mixed-mode voltage operation on all ports
• 8-bit serial-in, parallel-out shift
• Ioff supports live insertion, partial power-down mode, and back-drive protection
• Shift register has direct clear
• Latch-up performance exceeds 250 mA per JESD
Description of SN74LV595ARGYR
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Logic
Shift Registers
|
|
Mfr
|
Texas Instruments
|
|
Series
|
74LV
|
|
Product Status
|
Active
|
|
Logic Type
|
Shift Register
|
|
Output Type
|
Tri-State
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Function
|
Serial to Parallel, Serial
|
|
Voltage - Supply
|
2V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-VFQFN Exposed Pad
|
|
Supplier Device Package
|
16-VQFN (4x3.5)
|
|
Base Product Number
|
74LV595
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
