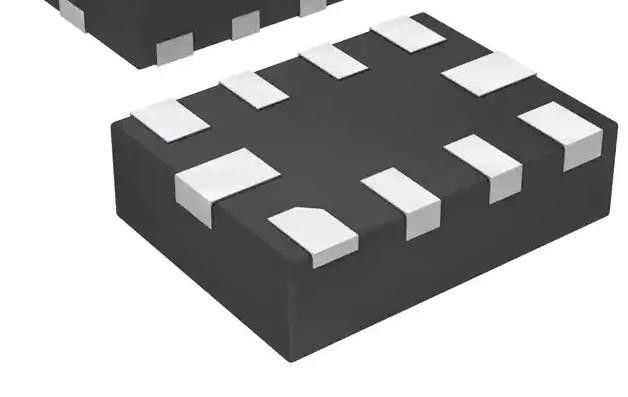

SN65LVDS4RSET Integrated Circuit Chip RECEIVER 10UQFN 65LVDS 500Mbps
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN65LVDS4RSET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 18 | Voltage: | 1.62V ~ 1.98V, 2.25V ~ 2.75V |
|---|---|---|---|
| Package / Case: | 10-UFQFN | Operating Temperature: | -40°C ~ 85°C |
| Data Rate: | 500Mbps | Supplier Device Package: | 10-UQFN (2.0x1.5) |
| High Light: | 500Mbps Integrated Circuit Chip,SN65LVDS4RSET,10UQFN Integrated Circuit Chip |
||
Product Description
SN65LVDS4RSET IC RECEIVER 10UQFN 500Mbps 0/1 65LVDS 500Mbps Tape & Reel
Features of SN65LVDS4RSET
Designed for Signaling Rates up to:
– 500-Mbps Receiver
Operates From a 1.8-V or 2.5-V Core Supply
Available in 1.5-mm × 2-mm UQFN Package
Bus-Terminal ESD Exceeds 2 kV (HBM)
Designed for Signaling Rates up to:
– 500-Mbps Receiver
Propagation Delay Times
– 2.1 ns Typical Receive
Power Dissipation at 250 MHz
– 40 mW Typical
• Requires External Failsafe
• Differential Input Voltage Threshold Less Than 50mV
Product Attributes of SN65LVDS4RSET
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Interface
Drivers, Receivers, Transceivers
|
|
Mfr
|
Texas Instruments
|
|
Series
|
65LVDS
|
|
Product Status
|
Active
|
|
Type
|
Receiver
|
|
Protocol
|
LVDS
|
|
Number of Drivers/Receivers
|
0/1
|
|
Duplex
|
-
|
|
Data Rate
|
500Mbps
|
|
Voltage - Supply
|
1.62V ~ 1.98V, 2.25V ~ 2.75V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-UFQFN
|
|
Supplier Device Package
|
10-UQFN (2.0x1.5)
|
|
Base Product Number
|
65LVDS4
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of SN65LVDS4RSET
• Clock Distribution
• Wireless Base Stations
• Network Routers
