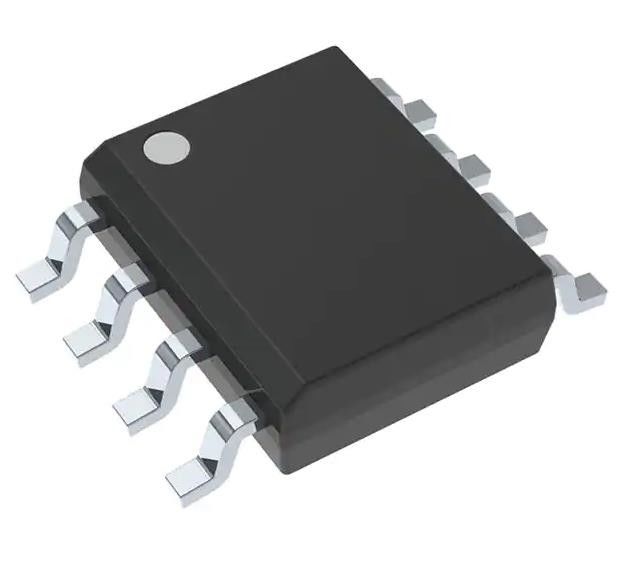

REF5050AQDRQ1 8-SOIC Integrated Circuit Chip Voltage Reference IC 5V 10mA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | REF5050AQDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Output (Min/Fixed): | 5V | Current - Output: | 10 MA |
|---|---|---|---|
| Tolerance: | ±0.1% | Temperature Coefficient: | 8ppm/°C |
| Noise - 0.1Hz To 10Hz: | 15µVpp/V | Voltage - Input: | 5.2V ~ 18V |
| Current - Supply: | 1.2mA | Product: | REF5050AQDRQ1 |
| High Light: | 8-SOIC Integrated Circuit Chip,Voltage Reference IC 5V 10mA,10mA REF5050AQDRQ1 |
||
Product Description
REF5050AQDRQ1 Voltage Reference IC Fixed 5V V ±0.1% 10 mA 8-SOIC
Features of REF5050AQDRQ1
FET input: IB = 50 pA Maximum FET input: IB = 50 pA Maximum Qualified for Automotive Applications
• Low Temperature Drift
– Standard Grade: 8 ppm/°C (max)
• High Accuracy
– Standard Grade: 0.1% (max)
Excellent Long-Term Stability:
– 5 ppm/1000 hr (typ) after 1000 hours
High Output Current: ±10 mA
Temperature Range: –40°C to 125°C
Product Attributes of REF5050AQDRQ1
|
Mfr
|
Texas Instruments
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Reference Type
|
Series
|
|
Output Type
|
Fixed
|
|
Voltage - Output (Min/Fixed)
|
5V
|
|
Current - Output
|
10 mA
|
|
Tolerance
|
±0.1%
|
|
Temperature Coefficient
|
8ppm/°C
|
|
Noise - 0.1Hz to 10Hz
|
15µVpp/V
|
|
Noise - 10Hz to 10kHz
|
-
|
|
Voltage - Input
|
5.2V ~ 18V
|
|
Current - Supply
|
1.2mA
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
REF5050
|
Applications of REF5050AQDRQ1
16-Bit Data Acquisition Systems
• ATE Equipment
• Industrial Process Control
• Medical Instrumentation
• Optical Control Systems
• Precision Instrumentation
Environmental & Export Classifications
