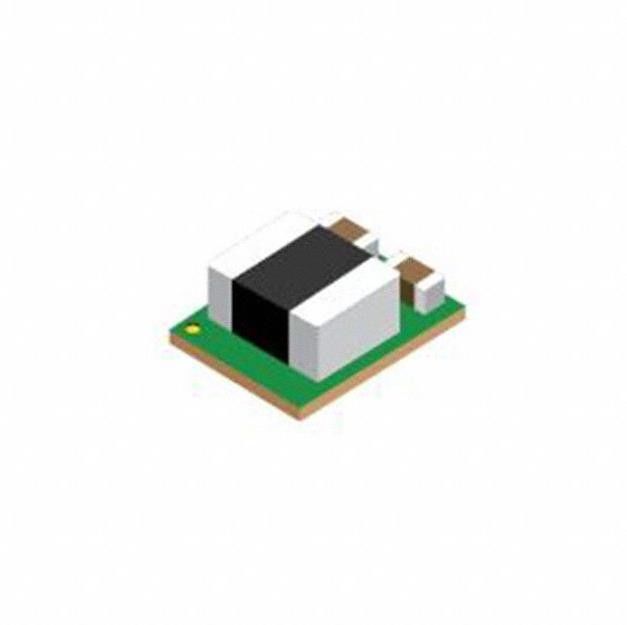

LMZM23600V3SILR Module DC Converter 1 Output 3.3V 500mA 4V-36V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LMZM23600V3SILR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output (Max): | 500mA | Voltage - Input (Min): | 4V |
|---|---|---|---|
| Voltage - Input (Max): | 36V | Operating Temperature: | -40°C ~ 125°C |
| Size / Dimension: | 0.15" L X 0.12" W X 0.06" H (3.8mm X 3.0mm X 1.6mm) | Supplier Device Package: | 10-uSIP (3.8x3) |
| High Light: | 36V LMZM23600V3SILR,4V LMZM23600V3SILR,3.3V 500mA Module DC DC Converter |
||
Product Description
LMZM23600V3SILR Module DC DC Converter 1 Output 3.3V 500mA 4V - 36V Input
Features of LMZM23600V3SILR
4-V to 36-V wide operating input voltage
• 1.2-V to 15-V adjustable, and 3.3-V or 5-V fixed
output voltage options
• 0.5-A Output current
• Only input and output capacitors needed for 5-V
and 3.3-V output designs
• 27-mm2
Solution size with single-sided layout
• 28-µA supply current at no load
• 2-µA shutdown current
• Power-good flag
• External frequency synchronization
• MODE selection pin
– Forced PWM mode for constant frequency
operation
– Auto PFM mode for high efficiency at light load
• Built-in control loop compensation, soft start,
current limit, and UVLO
• Miniature 3.8-mm × 3-mm × 1.6-mm package
• Create a custom design using the LMZM23600
with the WEBENCH® Power Designer
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Power Supplies - Board Mount
DC DC Converters
|
|
Mfr
|
T Instruments
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
4V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output 1
|
3.3V
|
|
Voltage - Output 2
|
-
|
|
Voltage - Output 3
|
-
|
|
Voltage - Output 4
|
-
|
|
Current - Output (Max)
|
500mA
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
OCP, SCP, UVLO
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Efficiency
|
87%
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-LDFN Exposed Pad, Module
|
|
Size / Dimension
|
0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm)
|
|
Supplier Device Package
|
10-uSIP (3.8x3)
|
|
Control Features
|
-
|
|
Base Product Number
|
LMZM23600
|
Applications of LMZM23600V3SILR
• Sensor transmitters
• Test and measurement
• Grid infrastructure
• Space constrained applications
Overview of LMZM23600V3SILR
The LMZM23600 is a 4-V to 36-V wide-input voltage range, low quiescent current, high-performance DC/DC
module designed specifically for space-constrained industrial applications. The device is available in an
adjustable output voltage option with 1.2-V to 15-V output range, as well as fixed 5-V and 3.3-V output options.
The high level of integration and innovative packaging technology utilized in this power module makes it possible
to design a 5-V or a 3.3-V 0.5-A DC/DC converter with only an input capacitor and an output capacitor in just 27
mm² of available board space.
