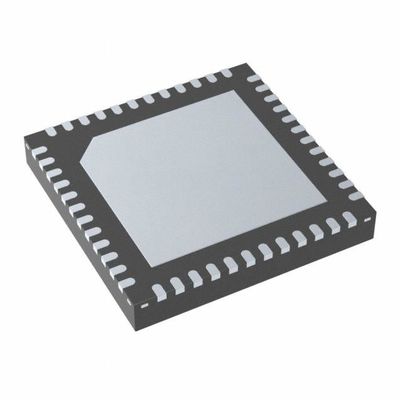

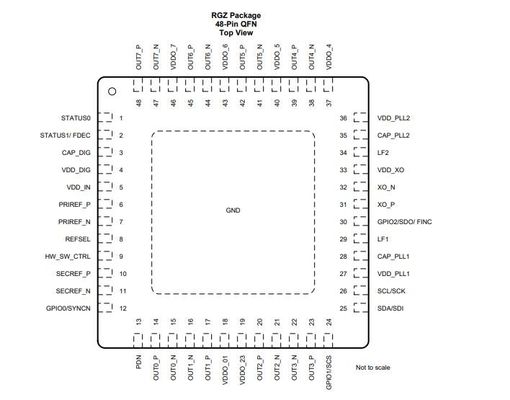

LMK05318RGZT Integrated Circuit Chip Ultra Low Jitter SNGL 48VQFN 800MHz
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LMK05318RGZT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Input: | Clock, LVCMOS | Output: | CML, HCSL, LVCMOS, LVDS, LVPECL |
|---|---|---|---|
| Number Of Circuits: | 2 | Ratio - Input:Output: | 2:8 |
| Frequency - Max: | 800MHz | Voltage - Supply: | 1.71V ~ 3.465V |
| High Light: | 800MHz LMK05318RGZT,800MHz Integrated Circuit Chip,LMK05318RGZT Integrated Circuit Chip |
||

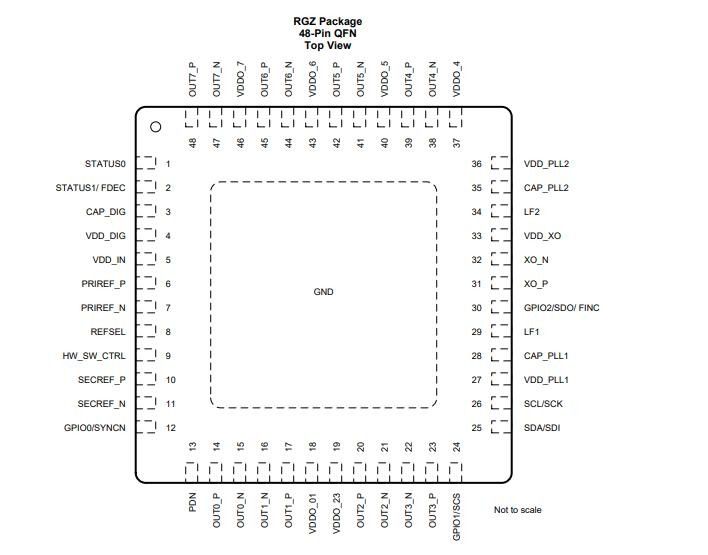

Product Description
LMK05318RGZT IC 800MHz 2 48-VFQFN Exposed Pad ULTRA LOW JITTER SNGL
Features of LMK05318RGZT
One Digital Phase-Locked Loop (DPLL) With:
– Hitless Switching: ±50-ps Phase Transient
– Programmable Loop Bandwidth With Fastlock
– Standards-Compliant Synchronization and
Holdover Using a Low-Cost TCXO/OCXO
• Two Analog Phase-Locked Loops (APLLs) With
Industry-Leading Jitter Performance:
– 50-fs RMS Jitter at 312.5 MHz (APLL1)
– 125-fs RMS Jitter at 155.52 MHz (APLL2)
• Two Reference Clock Inputs
– Priority-Based Input Selection
– Digital Holdover on Loss of Reference
• Eight Clock Outputs With Programmable Drivers
– Up to Six Different Output Frequencies
– AC-LVDS, AC-CML, AC-LVPECL, HCSL, and
– Hitless Switching: ±50-ps Phase Transient
– Programmable Loop Bandwidth With Fastlock
– Standards-Compliant Synchronization and
Holdover Using a Low-Cost TCXO/OCXO
• Two Analog Phase-Locked Loops (APLLs) With
Industry-Leading Jitter Performance:
– 50-fs RMS Jitter at 312.5 MHz (APLL1)
– 125-fs RMS Jitter at 155.52 MHz (APLL2)
• Two Reference Clock Inputs
– Priority-Based Input Selection
– Digital Holdover on Loss of Reference
• Eight Clock Outputs With Programmable Drivers
– Up to Six Different Output Frequencies
– AC-LVDS, AC-CML, AC-LVPECL, HCSL, and
Product Attributes of LMK05318RGZT
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Clock/Timing
Clock Generators, PLLs, Frequency Synthesizers
|
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Type
|
-
|
|
PLL
|
Yes with Bypass
|
|
Input
|
Clock, LVCMOS
|
|
Output
|
CML, HCSL, LVCMOS, LVDS, LVPECL
|
|
Number of Circuits
|
2
|
|
Ratio - Input:Output
|
2:8
|
|
Differential - Input:Output
|
Yes/Yes
|
|
Frequency - Max
|
800MHz
|
|
Divider/Multiplier
|
Yes/Yes
|
|
Voltage - Supply
|
1.71V ~ 3.465V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
48-VFQFN Exposed Pad
|
|
Supplier Device Package
|
48-VQFN (7x7)
|
|
Base Product Number
|
LMK05318
|
Applications of LMK05318RGZT
• SyncE (G.8262), SONET/SDH (Stratum 3/3E,
G.813, GR-1244, GR-253), IEEE 1588 PTP Slave
Clock, or Optical Transport Network (G.709)
• 400G Line Cards, Fabric Cards for Ethernet
Switches and Routers
• Wireless Base Station (BTS), Wireless Backhaul
• Test and Measurement, Medical Imaging
• Jitter Cleaning, Wander Attenuation, and
Reference Clock Generation for 56G/112G PAM-4
PHYs, ASICs, FPGAs, SoCs, and Processors
