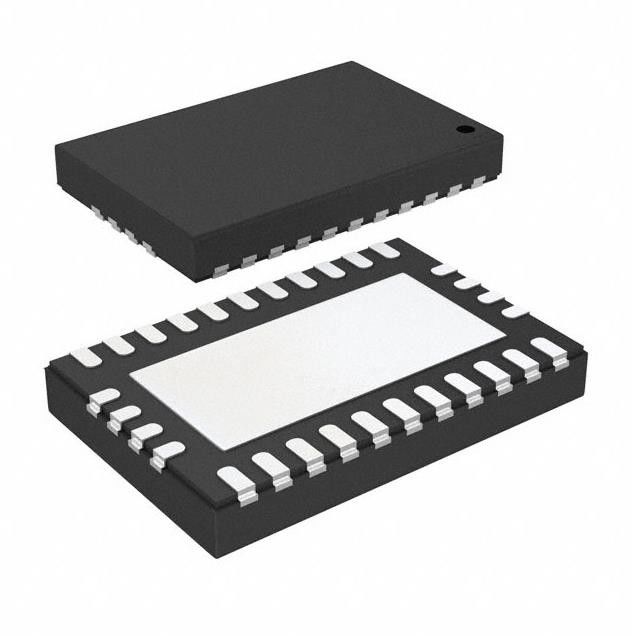

LM73606QRNPRQ1 Regulator IC 3.5A 22-VFQFN 3.3V Positive Fixed
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM73606QRNPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel | Slew Rate: | 18V/µs |
|---|---|---|---|
| Output Type: | Rail-to-Rail | Current - Input Bias: | 1.1 µA |
| Voltage - Output (Min/Fixed): | 700 µV | Current - Supply: | 3.3V |
| Frequency - Switching: | C | ||
| High Light: | 22-VFQFN 3.3 V Regulator IC,3.5A 3.3 V Regulator IC,3.5A LM73606QRNPRQ1 |
||
Product Description
• AEC-Q100-qualified for automotive applications
– Device temperature grade 1: –40°C to +125°C
ambient operating temperature
– Device HBM ESD classification level 2 kV
– Device CDM ESD classification level C5
• Wettable flanks QFN package (WQFN)
• Low EMI and low switching noise
• Low quiescent current
– 0.8 µA in shutdown (typical)
– 15 µA in active mode with no load (typical)
• Wide voltage conversion range:
– tON-MIN = 60 ns (typical)
– tOFF-MIN = 70 ns (typical)
• Low MOSFET ON-resistance:
– RDS_ON_HS = 53 mΩ (typical)
– RDS_ON_LS = 31 mΩ (typical)
• Adjustable frequency range: 350 kHz to 2.2 MHz
• Pin-selectable auto mode or forced PWM mode
• Start-up into pre-biased load, fixed or adjustable
soft-start time, and tracking
• Synchronizable to external clock, internal
compensation, power-good flag, and precision
enable
• Cycle-by-cycle current limiting, hiccup, UVLO, and
thermal shutdown protections
• Create a custom design with the WEBENCH®
power designer using LM73605-Q1 or LM73606-Q1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
Texas Instruments
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.5V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output (Min/Fixed)
|
1V
|
|
Voltage - Output (Max)
|
34.2V
|
|
Current - Output
|
6A
|
|
Frequency - Switching
|
350kHz ~ 2.2MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount, Wettable Flank
|
|
Package / Case
|
30-WFQFN Exposed Pad
|
|
Supplier Device Package
|
30-WQFN (6x4)
|
|
Base Product Number
|
LM73606
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN |
EAR99 |
