LM53603AQPWPRQ1 Buck Switching Regulator IC 3.3V 1 Output 3A 16-TSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM53603AQPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Function: | Step-Down |
|---|---|---|---|
| Voltage - Input (Min): | 3.9V | Voltage - Input (Max): | 36V |
| Voltage - Output (Max): | 6V | Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount | Supplier Device Package: | 16-HTSSOP |
| High Light: | 16-TSSOP Integrated Circuit Chip,3.3 V Voltage Regulator IC,LM53603AQPWPRQ1 3.3 V |
||
Product Description

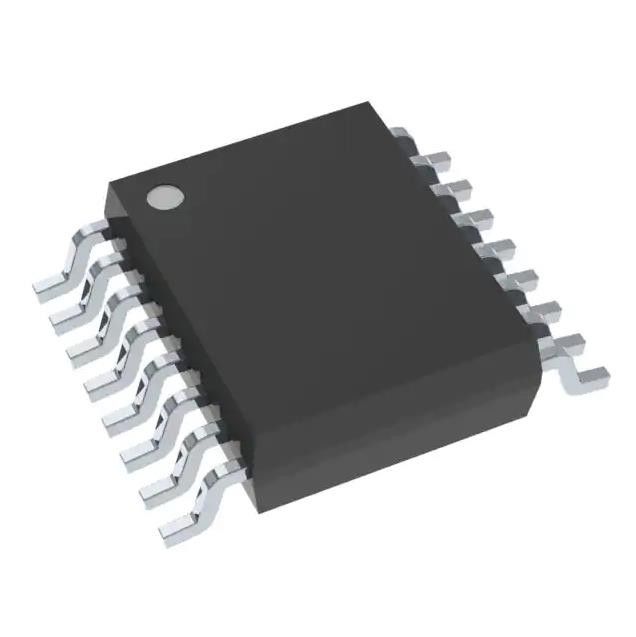

LM53603AQPWPRQ1 Buck Switching Regulator IC 3.3V 1 Output 3A 16-TSSOP
Features of LM53603AQPWPRQ1
The LM53603-Q1, LM53602-Q1 are available as AEC-Q1-Qualified Automotive Grade Products With Following Results:
– Device Temperature Grade 1: -40°C to +125°C
Ambient Operating Range
– Device HBM ESD Classification Level 1C
– Device CDM ESD Classification Level C4B
• 3 A or 2 A maximum load current
• Input Voltage Range from 3.5 V to 36 V:
Transients to 42 V
• Output Voltage Options: 5 V, 3.3 V, ADJ
• 2.1 MHz Fixed Switching Frequency
• ±2% Output Voltage Tolerance
• –40°C to 150°C Junction Temperature Range
• 1.7 µA Shutdown Current (typical)
• 24 µA Input Supply Current at No Load (typical)
• No external Feed-back Divider Required for 5 V or
3.3 V output
• Reset Output With Filter and Delay
• Automatic Light Load Mode for Improved
Efficiency
• User-Selectable Forced PWM mode (FPWM)
• Built-in Loop Compensation, Soft-start, Current
Limit, Thermal Shutdown, UVLO, and External
Frequency Synchronization
• Thermally Enhanced 16-lead Package:
5 mm x 4.4 mm x 1 mm
Product Attributes of LM53603AQPWPRQ1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
TI
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.9V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output (Min/Fixed)
|
3.3V
|
|
Voltage - Output (Max)
|
6V
|
|
Current - Output
|
3A
|
|
Frequency - Switching
|
2.1MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
|
|
Supplier Device Package
|
16-HTSSOP
|
|
Base Product Number
|
LM53603
|
Applications of LM53603AQPWPRQ1
• Industrial Power Supplies
• Telecommunications Systems
• Sub-AM Band Automotive
• General Purpose Wide VIN Regulation
• High Efficiency Point-Of-Load Regulation
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
