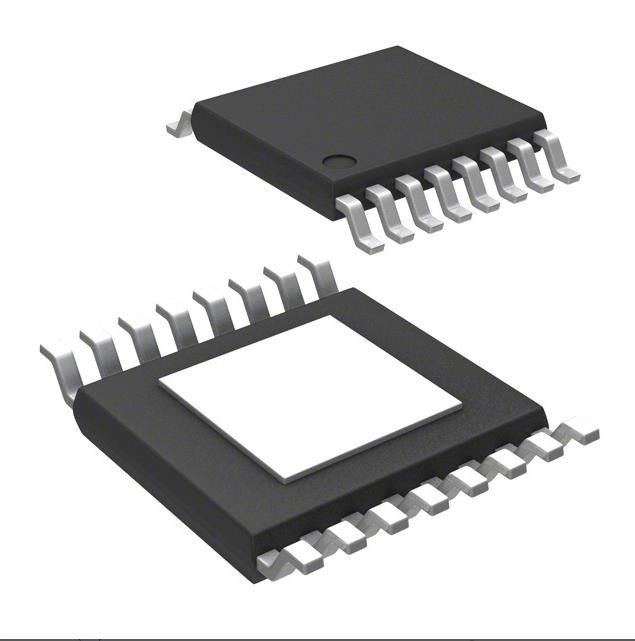

LM43600PWPR Integrated Circuit Chip 16 Power TSSOP Buck 500mA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM43600PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Buck | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 3.5V |
| Voltage - Input (Max): | 36V | Current - Output: | 500mA |
| Operating Temperature: | -40°C ~ 125°C | Supplier Device Package: | 16-HTSSOP |
| High Light: | 500mA Integrated Circuit Chip,LM43600PWPR 16 Power TSSOP,Buck Integrated Circuit Chip |
||
Product Description
LM43600PWPR IC Positive Adjustable 1V 1 Output 500mA 16-Power TSSOP
LM43600PWPR IC Positive Adjustable 1V 1 Output 500mA 16-Power TSSOP
Features of LM43600PWPR
Wide Input Voltage Range: 4.5 V to 42 V
Internally Compensated Voltage Mode Control
Stable with Low ESR Ceramic Capacitors
120 mΩ N-Channel MOSFET PFM Package
100 mΩ N-Channel MOSFET PSOP-8 Package
Output Voltage Options:
-ADJ (Outputs as Low as 1.285 V)
-5.0 (Output Fixed to 5 V)
±1.5% Feedback Reference Accuracy
Switching Frequency of 500 kHz
–40°C to 125°C Operating Junction Temperature Range
Precision Enable Pin
Integrated Boot-Strap Diode
Integrated Soft-Start
LM22676Q is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to
+125°C Operating Junction Temperature)
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Mfr
|
TI
|
|
Series
|
SIMPLE SWITCHER®
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.5V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output (Min/Fixed)
|
1V
|
|
Voltage - Output (Max)
|
28V
|
|
Current - Output
|
500mA
|
|
Frequency - Switching
|
200kHz ~ 2.2MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-PowerTSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-HTSSOP
|
|
Base Product Number
|
LM43600
|
Applications of LM43600PWPR
• Industrial Power Supplies
• Telecommunications Systems
• Sub-AM Band Automotive
• General Purpose Wide VIN Regulation
• High Efficiency Point-Of-Load Regulation
