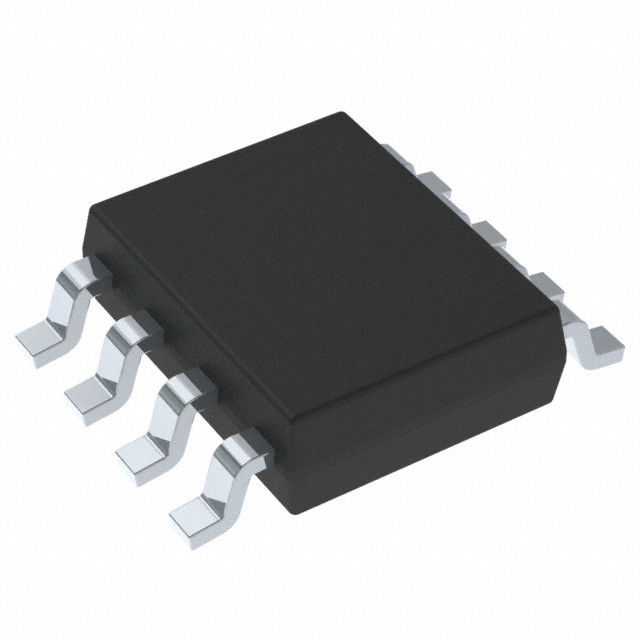

LM22676MRE-5.0 NOPB Switching Regulator IC 5V 1 Output 3A 8 Power SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM22676MRE-5.0/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Buck | Voltage - Input (Min): | 4.5V |
|---|---|---|---|
| Voltage - Input (Max): | 42V | Voltage - Output (Min/Fixed): | 5V |
| Current - Output: | 3A | Frequency - Switching: | 500kHz |
| High Light: | LM22676MRE-5.0 NOPB,NOPB Switching Regulator IC,5V Switching Regulator IC |
||
Product Description
LM22676MRE-5.0 / NOPB Switching Regulator IC 5V 1 Output 3A 8-Power SOIC
Features of LM22676MRE-5.0/NOPB
Wide Input Voltage Range: 4.5 V to 42 V
Internally Compensated Voltage Mode Control
Stable with Low ESR Ceramic Capacitors
120 mΩ N-Channel MOSFET PFM Package
100 mΩ N-Channel MOSFET PSOP-8 Package
Output Voltage Options:
-ADJ (Outputs as Low as 1.285 V)
-5.0 (Output Fixed to 5 V)
±1.5% Feedback Reference Accuracy
Switching Frequency of 500 kHz
–40°C to 125°C Operating Junction Temperature Range
Precision Enable Pin
Integrated Boot-Strap Diode
Integrated Soft-Start
LM22676Q is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to
+125°C Operating Junction Temperature)
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Series
|
SIMPLE SWITCHER®
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Fixed
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
4.5V
|
|
Voltage - Input (Max)
|
42V
|
|
Voltage - Output (Min/Fixed)
|
5V
|
|
Voltage - Output (Max)
|
-
|
|
Current - Output
|
3A
|
|
Frequency - Switching
|
500kHz
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-PowerSOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SO PowerPad
|
|
Base Product Number
|
LM22676
|
Applications of LM22676MRE-5.0/NOPB
Industrial Control
Telecom and Datacom Systems
Embedded Systems
Conversions from Standard 24 V, 12 V and 5 V Input Rails
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
