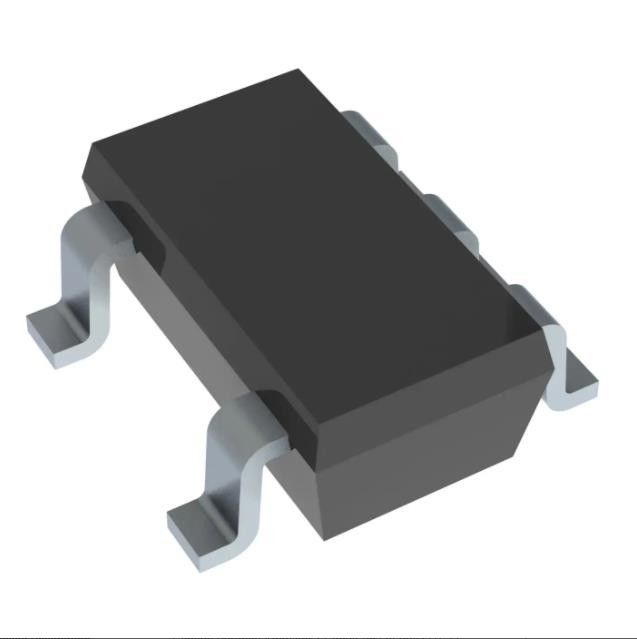

LM7321MF NOPB General Purpose Amplifier 1 Circuit Rail To Rail SOT-23-5
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM7321MF/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel | Slew Rate: | 18V/µs |
|---|---|---|---|
| Output Type: | Rail-to-Rail | Current - Input Bias: | 1.1 µA |
| Voltage - Input Offset: | 700 µV | Current - Supply: | 1.1mA |
| High Light: | LM7321MF NOPB,LM7321MF General Purpose Amplifier,SOT-23-5 General Purpose Amplifier |
||
Product Description
LM7321MF / NOPB General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Features of LM7321MF/NOPB
Vs=±15,TA=25℃,Typical Values Unless Specified.)
Wide Supply Voltage Range 2.5 V to 32 V
Output Current +65 mA/-100 mA
Gain Bandwidth Product 20 MHz
Slew Rate 18 V/us
Capacitive Load Tolerance Unlimited
Input Common-Mode Voltage 0.3-V Beyond Rails
Input Voltage Noise 15 nV/√Hz
Input Current Noise 1.3 pA/vHz
Supply Current/Channel 1.1 mA
Distortion THD+Noise-86 dB
Temperature Range-40℃ to 125℃Tested at-40°C,25°C and 125°C at 2.7V,±5 V, ±15V.
LM732xx are Automotive Grade Products that are AEC-Q100 Grade 1 Qualified.
Wide Supply Voltage Range 2.5 V to 32 V
Output Current +65 mA/-100 mA
Gain Bandwidth Product 20 MHz
Slew Rate 18 V/us
Capacitive Load Tolerance Unlimited
Input Common-Mode Voltage 0.3-V Beyond Rails
Input Voltage Noise 15 nV/√Hz
Input Current Noise 1.3 pA/vHz
Supply Current/Channel 1.1 mA
Distortion THD+Noise-86 dB
Temperature Range-40℃ to 125℃Tested at-40°C,25°C and 125°C at 2.7V,±5 V, ±15V.
LM732xx are Automotive Grade Products that are AEC-Q100 Grade 1 Qualified.
Product Attributes of LM7321MF/NOPB
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
TI
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Amplifier Type
|
General Purpose
|
|
Number of Circuits
|
1
|
|
Output Type
|
Rail-to-Rail
|
|
Slew Rate
|
18V/µs
|
|
Gain Bandwidth Product
|
20 MHz
|
|
Current - Input Bias
|
1.1 µA
|
|
Voltage - Input Offset
|
700 µV
|
|
Current - Supply
|
1.1mA
|
|
Current - Output / Channel
|
100 mA
|
|
Voltage - Supply Span (Min)
|
2.5 V
|
|
Voltage - Supply Span (Max)
|
32 V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
LM7321
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN |
EAR99 |
