LM5045SQX Integrated Circuit Chip Converter Offline Full Bridge Topology 2MHz
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM5045SQX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel | Voltage - Supply (Vcc/Vdd): | 14V ~ 100V |
|---|---|---|---|
| Output Type: | Adjustable | Frequency - Switching: | Up To 2MHz |

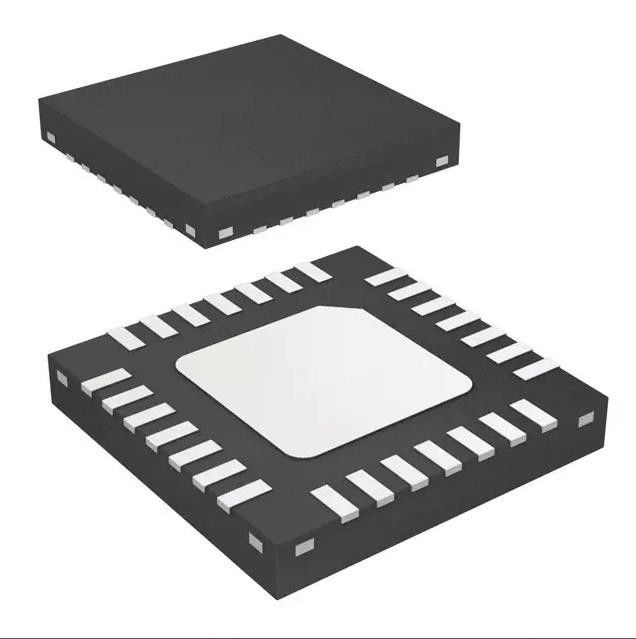

| Package / Case: | 28-WFQFN Exposed Pad | Supplier Device Package: | 28-WQFN (5x5) |
| High Light: | LM5045SQX NOPB,LM5045SQX Integrated Circuit Chip,2MHz Integrated Circuit Chip |
||
Product Description
LM5045SQX / NOPB IC Converter Offline Full-Bridge Topology Up to 2MHz 28-WQFN (5x5)
Product Attributes of LM5045SQX/NOPB
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
AC DC Converters, Offline Switches
|
|
Mfr
|
Ti
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Output Isolation
|
Isolated
|
|
Internal Switch(s)
|
No
|
|
Voltage - Breakdown
|
-
|
|
Topology
|
Full-Bridge
|
|
Voltage - Supply (Vcc/Vdd)
|
14V ~ 100V
|
|
Duty Cycle
|
-
|
|
Frequency - Switching
|
Up to 2MHz
|
|
Fault Protection
|
Current Limiting, Over Temperature, Over Voltage
|
|
Control Features
|
Frequency Control, Soft Start, Sync
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Package / Case
|
28-WFQFN Exposed Pad
|
|
Supplier Device Package
|
28-WQFN (5x5)
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
LM5045
|
Features of LM5045SQX/NOPB
Highest Integration Controller for Small Form
High-Voltage Start-Up Regulator
Intelligent Sync Rectifier Start-Up Allows Linear Turnon Into Prebiased Loads
Synchronous Rectifiers Disabled in UVLO mode and Hiccup Mode
Two Independent, Programmable Synchronous Rectifier Dead-Time Adjustments
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
