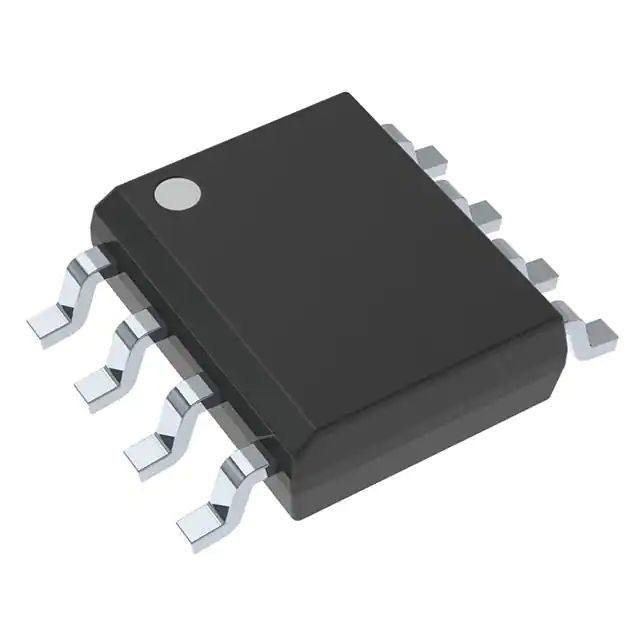

LM2674MX-ADJ NOPB IC REG BUCK ADJ 500MA 8SOIC Adjustable 1.2V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM2674MX-ADJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel | Function: | Step-Down |
|---|---|---|---|
| Output Type: | Adjustable | Voltage - Input (Min): | 6.5V |
| Voltage - Input (Max): | 40V | Voltage - Output (Max): | 37V |
| High Light: | LM2674MX-ADJ NOPB IC,IC REG BUCK ADJ 500MA 8SOIC,1.2V LM2674MX-ADJ NOPB |
||
Product Description
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Mfr
|
Ti
|
|
Series
|
SIMPLE SWITCHER®
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
6.5V
|
|
Voltage - Input (Max)
|
40V
|
|
Voltage - Output (Min/Fixed)
|
1.2V
|
|
Voltage - Output (Max)
|
37V
|
|
Current - Output
|
500mA
|
|
Frequency - Switching
|
260kHz
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
LM2674
|
Features of LM2674MX-ADJ
1• Efficiency up to 96%
• Available in 8-Pin SOIC, PDIP, and 16-Pin WSON
Packages
• Simple and Easy to Design With
• Requires Only 5 External Components
• Uses Readily Available Standard Inductors
• 3-V, 5-V, 12-V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range: 1.21 V
to 37 V
• ±1.5% Maximum Output Voltage Tolerance Over
Line and Load Conditions
• Ensured 500-mA Output Load Current
• 0.25-Ω DMOS Output Switch
• Wide Input Voltage Range: 8 V to 40 V
• 260-kHz Fixed Frequency Internal Oscillator
• TTL Shutdown Capability, Low Power Standby
Mode
• Thermal Shutdown and Current Limit Protection
Applications of LM2674MX-ADJ
• Simple High Efficiency (>90%) Step-Down (Buck)
Regulators
• Efficient Preregulator for Linear Regulators
• Positive-to-Negative Converters
Overview of LM2674MX-ADJ
The LM2674 SIMPLE SWITCHER®
regulator is an easy-to-use non-synchronous step-down DC-DC converter
with a wide input voltage range up to 40 V. It is capable of delivering up to 0.5-A DC load current with excellent
line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an
adjustable output version. The family requires few external components and the pin arrangement was designed
for simple, optimum PCB layout.
