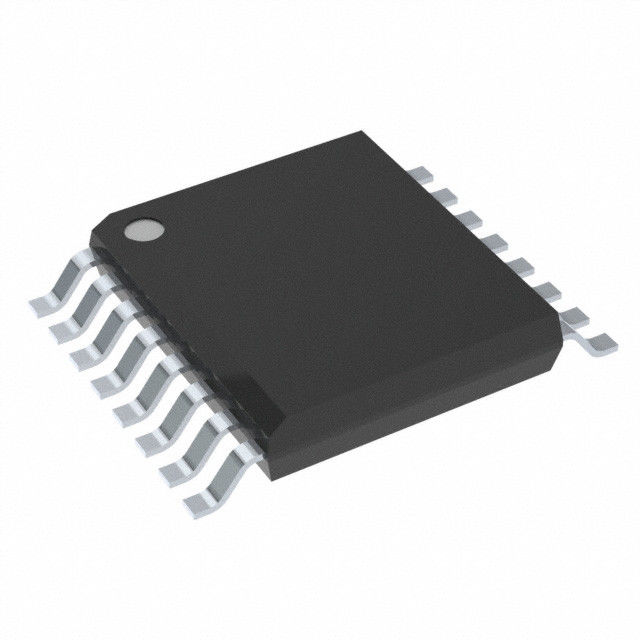

ISO7762FDBQR General Purpose Digital Isolator 100Mbps 3000Vrms 6 Channel
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ISO7762FDBQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 6 | Isolated Power: | No |
|---|---|---|---|
| Voltage - Isolation: | 3000Vrms | Data Rate: | 100Mbps |
| Rise / Fall Time (Typ): | 1.1ns, 1.4ns | Voltage - Supply: | 2.25V ~ 5.5V |
| High Light: | 3000Vrms Texas Instruments Digital Isolator,100Mbps Texas Instruments Digital Isolator,6 Channel ISO7762FDBQR |
||
Product Description
Features of of ISO7762FDBQR
• 100 Mbps data rate
• Robust isolation barrier:
– >100-Year projected lifetime
– Up to 5000 VRMS isolation rating
– Up to 12.8 kV surge capability
– ±100 kV/μs Typical CMTI
• Wide supply range: 2.25 V to 5.5 V
• 2.25-V to 5.5-V Level translation
• Default output high (ISO776x) and low (ISO776xF)
Options
• Wide temperature range: –55°C to +125°C
• Low power consumption, typical 1.4 mA per
channel at 1 Mbps
• Low propagation delay: 11 ns typical at 5 V
• Robust Electromagnetic Compatibility (EMC):
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 Contact discharge
protection across isolation barrier
– Low emissions
• Wide-SOIC (DW-16) and SSOP (DBQ-16)
package options
• Automotive version available: ISO776x-Q1
• Safety-related certifications:
– Reinforced insulation per DIN V VDE V
0884-11:2017-01
– UL 1577 component recognition program
– CSA Certification per IEC 60950-1, IEC
62368-1, and IEC 60601-1
– CQC Certification per GB4943.1-2011
– TUV Certification according to EN 60950-1 and
EN 61010-1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Isolators
Digital Isolators
|
|
Mfr
|
Texas Instruments
|
|
Series
|
ISO776x
|
| Package | Tape & Reel |
|
Product Status
|
Active
|
|
Technology
|
Capacitive Coupling
|
|
Type
|
General Purpose
|
|
Isolated Power
|
No
|
|
Number of Channels
|
6
|
|
Inputs - Side 1/Side 2
|
4/2
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
3000Vrms
|
|
Common Mode Transient Immunity (Min)
|
85kV/µs
|
|
Data Rate
|
100Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
16ns, 16ns
|
|
Pulse Width Distortion (Max)
|
4.9ns
|
|
Rise / Fall Time (Typ)
|
1.1ns, 1.4ns
|
|
Voltage - Supply
|
2.25V ~ 5.5V
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SSOP (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SSOP
|
|
Base Product Number
|
ISO7762
|
