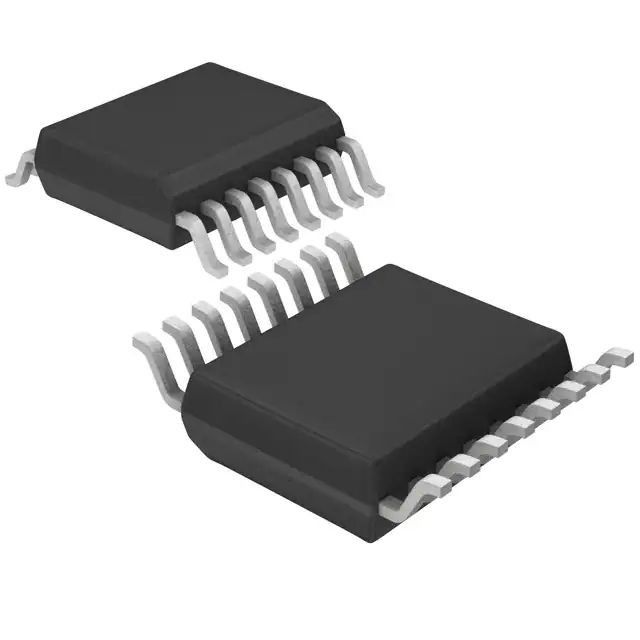

ISO7140FCCDBQR Integrated Circuit Chip 2500Vrms 50Mbps Quad Channel Digital Isolator
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ISO7140FCCDBQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | Capacitive Coupling | Isolated Power: | No |
|---|---|---|---|
| Inputs - Side 1/Side 2: | 4/0 | Voltage - Isolation: | 2500Vrms |
| Data Rate: | 50Mbps | Rise / Fall Time (Typ): | 2ns, 2ns |
| High Light: | 50Mbps Integrated Circuit Chip,2500Vrms ISO7140FCCDBQR,50Mbps Quad Channel Digital Isolator |
||
Product Description
ISO7140FCCDBQR General Purpose Digital Isolator 2500Vrms 50Mbps Quad Channel
General Purpose Digital Isolator 2500Vrms 4 Channel 50Mbps 25kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
Features of ISO7140FCCDBQR
Maximum Signaling Rate: 50 Mbps (With 5-V galvanic isolation up to 2500 VRMS for 1 minute per Supplies)
Robust Design With Integrated Noise Filter
Default Output Low Option (Suffix F)
Low Power Consumption, Typical ICC per Channel (With 3.3-V Supplies)
Low Propagation Delay: 23-ns Typical (3.3-V Supplies)
Wide Temperature Range: –40°C to 125°C
Long Life With SiO2 Isolation Barrier
Safety and Regulatory Approvals
Applications of ISO7140FCCDBQR
• General-Purpose Isolation
– Industrial Fieldbus
– Profibus
– Modbus™
– DeviceNet Data Buses
– RS-232, RS-485
– Serial Peripheral Interface
Product Attributes of ISO7140FCCDBQR
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Isolators
Digital Isolators
|
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Technology
|
Capacitive Coupling
|
|
Type
|
General Purpose
|
|
Isolated Power
|
No
|
|
Number of Channels
|
4
|
|
Inputs - Side 1/Side 2
|
4/0
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
2500Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Data Rate
|
50Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
35ns, 35ns
|
|
Pulse Width Distortion (Max)
|
3ns
|
|
Rise / Fall Time (Typ)
|
2ns, 2ns
|
|
Voltage - Supply
|
2.7V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SSOP (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SSOP
|
|
Base Product Number
|
ISO7140
|
