ISO7041DBQR SPI Digital Isolator With 3000Vrms 4 Channel 2Mbps
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ISO7041DBQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Isolation: | 5700Vrms | Common Mode Transient Immunity (Min): | 2.25V ~ 5.5V |
|---|---|---|---|
| Rise / Fall Time (Typ): | 18ns, 20ns | Current - Output High, Low: | 1.5A, 3.4A |
| Current - Peak Output: | 2.7A, 5.5A | Voltage - Output Supply: | 15V ~ 30V |
| High Light: | ISO7041DBQR SPI Digital Isolator,3000Vrms SPI Digital Isolator,ISO7041DBQR 4 Channel |
||
Product Description

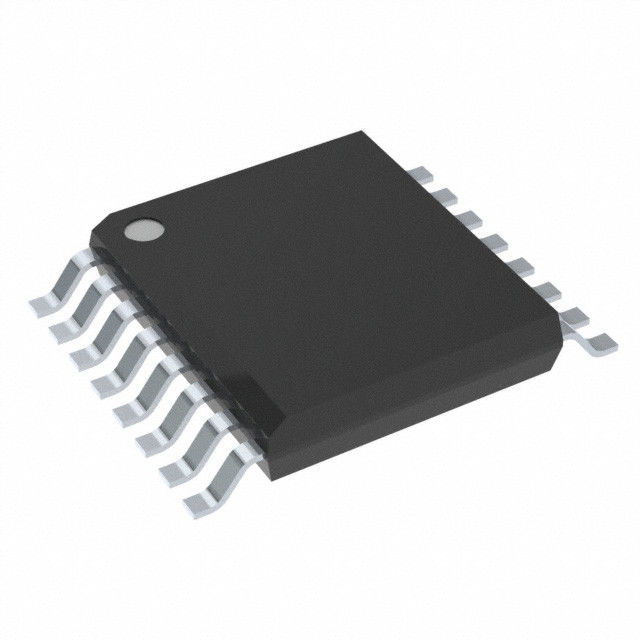

SPI Digital Isolator ISO7041DBQR With 3000Vrms 4 Channel 2Mbps 50kV/ΜS CMTI 16-SSOP
Features of ISO7041DBQR
– 3.5 μA per channel quiescent current (3.3 V)
– 15 μA per channel at 100 kbps (3.3 V)
– 116 μA per channel at 1 Mbps (3.3 V)
• Robust isolation barrier
– >100-year projected lifetime
– 3000 VRMS isolation rating
– ±100 kV/μs typical CMTI
• Wide supply range: 1.71 V to 1.89 V and 2.25 V to
5.5 V
• Wide temperature range:
– 1.71 V to 1.89 V: –55°C to +105°C
– 2.25 V to 5.5 V: –55°C to +125°C
• Small 16-QSOP package (16-DBQ)
• Signaling rate: Up to 4 Mbps
• Default output High (ISO7041) and Low
(ISO7041F) options
• Robust electromagnetic compatibility (EMC)
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 contact discharge
protection across isolation barrier
– Very low emissions
• Safety-related certifications :
– UL 1577 Component Recognition Program
– DIN VDE V 0884-11
– CQC, TUV and CSA
– IECEx (IEC 60079-0 & IEC 60079-11) and
ATEX (EN 60079-0 & EN 60079-11)
– 3.5 μA per channel quiescent current (3.3 V)
– 15 μA per channel at 100 kbps (3.3 V)
– 116 μA per channel at 1 Mbps (3.3 V)
• Robust isolation barrier
– >100-year projected lifetime
– 3000 VRMS isolation rating
– ±100 kV/μs typical CMTI
• Wide supply range: 1.71 V to 1.89 V and 2.25 V to
5.5 V
• Wide temperature range:
– 1.71 V to 1.89 V: –55°C to +105°C
– 2.25 V to 5.5 V: –55°C to +125°C
• Small 16-QSOP package (16-DBQ)
• Signaling rate: Up to 4 Mbps
• Default output High (ISO7041) and Low
(ISO7041F) options
• Robust electromagnetic compatibility (EMC)
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 contact discharge
protection across isolation barrier
– Very low emissions
• Safety-related certifications :
– UL 1577 Component Recognition Program
– DIN VDE V 0884-11
– CQC, TUV and CSA
– IECEx (IEC 60079-0 & IEC 60079-11) and
ATEX (EN 60079-0 & EN 60079-11)
Product Attributes of ISO7041DBQR
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Isolators
Digital Isolators
|
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
| Package | |
|
Product Status
|
Active
|
|
Technology
|
Capacitive Coupling
|
|
Type
|
SPI
|
|
Isolated Power
|
No
|
|
Number of Channels
|
4
|
|
Inputs - Side 1/Side 2
|
3/1
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
3000Vrms
|
|
Common Mode Transient Immunity (Min)
|
50kV/µs
|
|
Data Rate
|
2Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
165ns, 165ns
|
|
Pulse Width Distortion (Max)
|
10ns
|
|
Rise / Fall Time (Typ)
|
5ns, 5ns (Max)
|
|
Voltage - Supply
|
1.71V ~ 1.89V, 2.25V ~ 5.5V
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SSOP (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SSOP
|
|
Base Product Number
|
ISO7041
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
