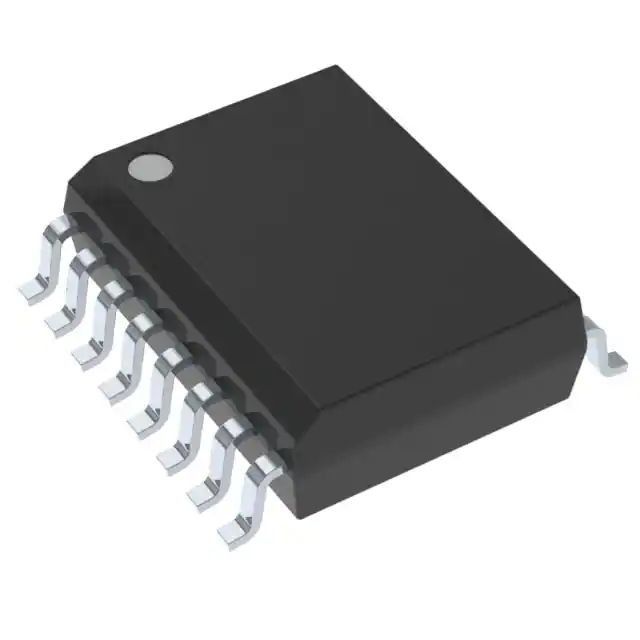

ISO5852SMDWREP Integrated Circuit Chip 5700V Rms 5.5A Isolator Gate Driver
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ISO5852SMDWREP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Isolation: | 5700Vrms | Common Mode Transient Immunity (Min): | 2.25V ~ 5.5V |
|---|---|---|---|
| Rise / Fall Time (Typ): | 18ns, 20ns | Current - Output High, Low: | 1.5A, 3.4A |
| Current - Peak Output: | 2.7A, 5.5A | Voltage - Output Supply: | 15V ~ 30V |
| High Light: | ISO5852SMDWREP Integrated Circuit Chip,5700v Rms Integrated Circuit Chip,5.5A ISO5852SMDWREP |
||
Product Description
ISO5852SMDWREP Coupling 5700Vrms 1 Channel 16-SOIC 5.5A Isolators Gate Driver
Features of ISO5852SMDWREP
1• 100-kV/μs Minimum Common-Mode Transient
Immunity (CMTI) at VCM = 1500 V
• Split Outputs to Provide 2.5-A Peak Source and
5-A Peak Sink Currents
• Short Propagation Delay: 76 ns (Typ),
110 ns (Max)
• 2-A Active Miller Clamp
• Output Short-Circuit Clamp
• Soft Turn-Off (STO) during Short Circuit
• Fault Alarm upon Desaturation Detection is
Signaled on FLT and Reset Through RST
• Input and Output Undervoltage Lockout (UVLO)
with Ready (RDY) Pin Indication
• Active Output Pulldown and Default Low Outputs
with Low Supply or Floating Inputs
• 2.25-V to 5.5-V Input Supply Voltage
• 15-V to 30-V Output Driver Supply Voltage
• CMOS Compatible Inputs
• Rejects Input Pulses and Noise Transients
Shorter Than 20 ns
• Operating Temperature: –55°C to +125°C
Ambient
• Surge Immunity 12800-VPK (according to IEC
61000-4-5)
• Safety-Related Certifications:
– 8000-VPK VIOTM and 2121-VPK VIORM
Reinforced Isolation per DIN V VDE V 0884-10
(VDE V 0884-10):2006-12
– 5700-VRMS Isolation for 1 Minute per UL 1577
– CSA Component Acceptance Notice 5A, IEC
60950-1, IEC 60601-1 and IEC 61010-1 End
Equipment Standards
– CQC Certification per GB4943.1-2011
– All Certifications Complete per UL, VDE, CQC,
TUV and Planned for CSA
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Isolators
Isolators - Gate Drivers
|
|
Mfr
|
TI
|
|
Series
|
-
|
| Package |
Tape & Reel (TR) Cut Tape (CT) |
|
Product Status
|
Active
|
|
Technology
|
Capacitive Coupling
|
|
Number of Channels
|
1
|
|
Voltage - Isolation
|
5700Vrms
|
|
Common Mode Transient Immunity (Min)
|
100kV/µs
|
|
Propagation Delay tpLH / tpHL (Max)
|
110ns, 110ns
|
|
Pulse Width Distortion (Max)
|
-
|
|
Rise / Fall Time (Typ)
|
18ns, 20ns
|
|
Current - Output High, Low
|
1.5A, 3.4A
|
|
Current - Peak Output
|
2.7A, 5.5A
|
|
Voltage - Forward (Vf) (Typ)
|
-
|
|
Voltage - Output Supply
|
15V ~ 30V
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Approval Agency
|
CQC, CSA, TUV, UL, VDE
|
|
Base Product Number
|
ISO585
Environmental & Export Classifications
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Description of ISO5852SMDWREP
The ISO5852S-EP device is a 5.7-kVRMS, reinforced isolated gate driver for IGBTs and MOSFETs with
split outputs, OUTH and OUTL, providing 2.5-A source and 5-A sink current. The input side operates
from a single 2.25-V to 5.5-V supply.
